Our method of final disposal

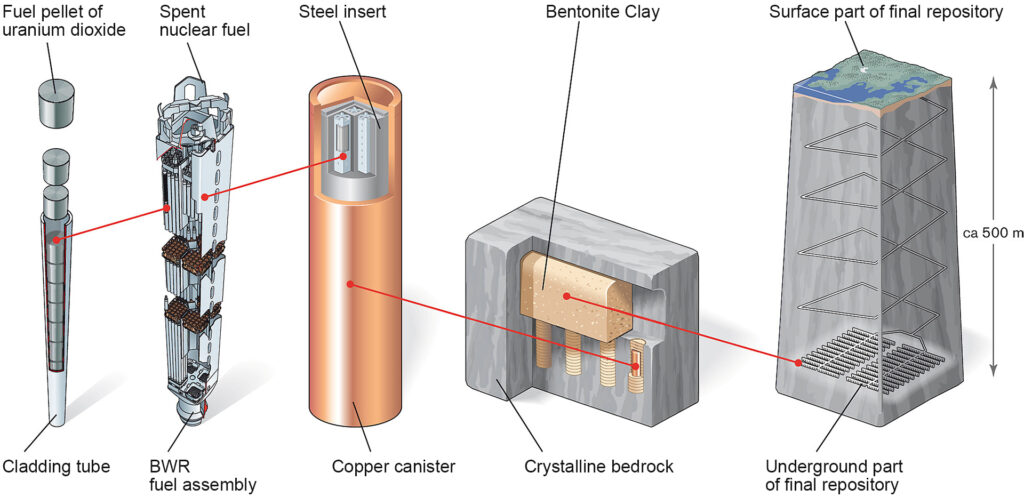

SKB uses a special method for final disposal of the spent nuclear fuel. It is called KBS-3 and is based on three protective barriers: copper canisters, Bentonite clay and the Swedish bedrock.

All spent nuclear fuel is currently under temporary storage at the interim storage facility (Clab) in Oskarshamn. The radiation gradually decays and the waste becomes progressively less dangerous. But it also contains substances that are active for a very long time and these need to be finally disposed of for many years to come.

SKB is therefore planning to construct a Spent Fuel Repository at Forsmark in Östhammars Municipality. The method that has been developed involves first encapsulating the nuclear fuel in copper canisters. The sealed copper canisters will then be placed in a system of tunnels about 500 metres deep in the solid bedrock. Here they will be embedded in Bentonite clay.

Copper canisters

The copper canisters will have nodular cast iron inserts. They are five metres long and one single capsule will weigh about 25 tons when it is filled with spent fuel. The outer casing consists of five-centimetre-thick copper. The canisters have been constructed to withstand corrosion and the mechanical forces that can result from movements in the rock surrounding the Spent Fuel Repository.

Buffer

The copper canisters will be embedded in Bentonite clay in the Spent Fuel Repository’s tunnels. This clay will act as a buffer and protect the canister from corrosion and minor movements in the bedrock. The clay buffer will gradually absorb water and swell to fill the space around it and any cracks in the rock. If any cracks occur in a canister, the clay buffer will prevent water from entering it. The buffer also prevents the escape of any radioactive substances into the rock.

Bedrock

The final barrier consists of the bedrock itself. The task of the rock is to isolate the waste. It provides a stable chemical environment and protection from events at ground level. But the bedrock also contains groundwater that flows through fractures in the rock. If any radioactive substances were to escape from a canister and penetrate the clay buffer, they could be caught by surfaces and minerals in these fractures and also in the rock’s micropores.

The bedrock and the great depth help to isolate the spent fuel from human beings and the environment for at least 100,000 years. This means that the canisters and the buffer will continue to function for a very long time. A safe final repository will have been created.
